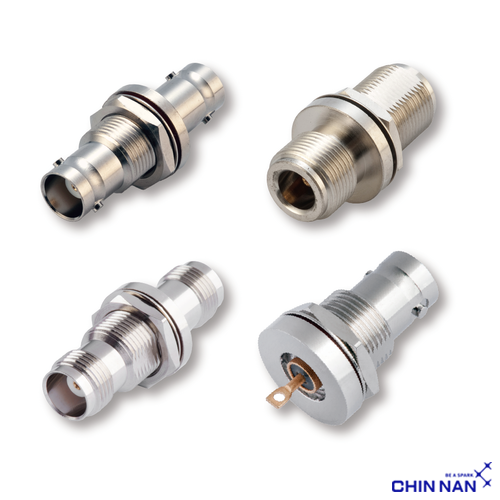

Chin Nan hermetic connectors are designed for use in harsh application environments.
The sealing (helium leak) rate for our hermetic connectors can achieved to 1X10-8 cc/sec.

Chin Nan launched new products of 75 ohm connectors which operate at the increased bandwidth and frequencies required for UHD Serial Digital Video system.

They are provided superior VSWR, impedance and return loss through 6 GHz.

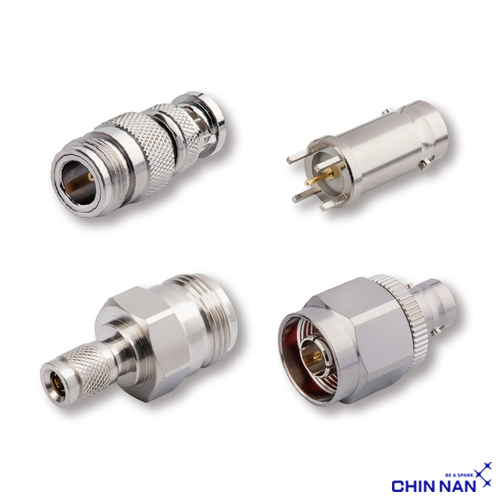

The 6G_75 ohm connectors are available for BNC, 1.0/2.3 connectors.

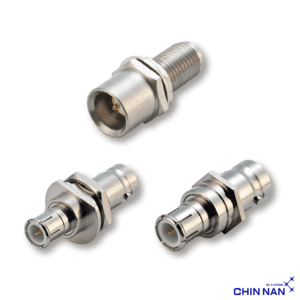

Blind mate connectors are used in which the mating action happens where equipment must slide in and make connections inside the cabinet.
The connectors provide with a slide-on interface for low mating and unmating forces.

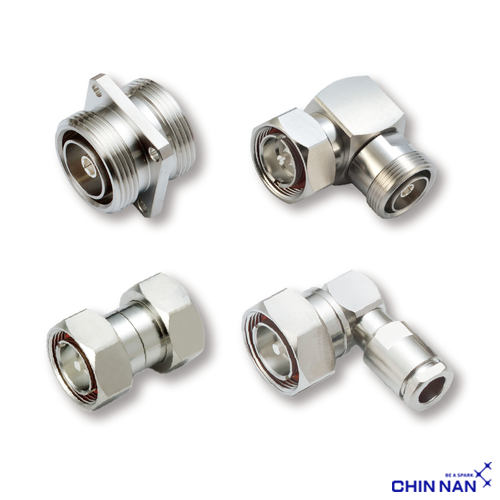

Applied Frequency up to 7.5 GHz.

•Features: Low VSWR, excellent power handling capability, vibration resistance, environmental protection.
•Fastening Type: Threaded
•Impedance: 50 Ω
•Frequency Range: DC to 7.5 GHz
•Terminations: Crimp, Clamp, Solder, Plug In
•Suggested Application: Radio Base Station, Broadcast Communication

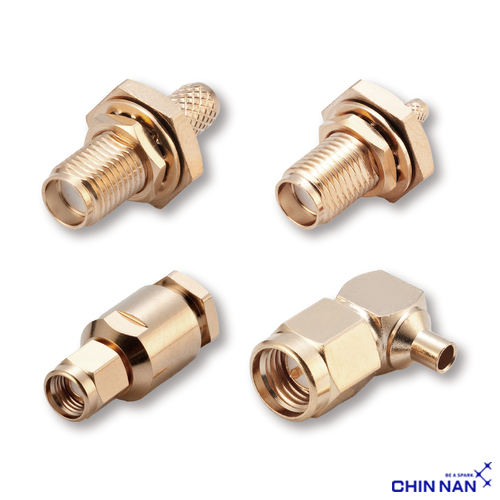

For flexible cable type of SMA connectors, the frequency range is up to 12.4 GHz; as for semi rigid cable type, the range is up to 18 GHz.

•Features: Low VSWR, broadband performance
•Fastening Type: Threaded
•Impedance: 50 Ω
•Frequency Range: DC to 18 GHz
•Terminations: Clamp, Crimp, Solder
•Suggested Application: PCB, Microwave Components, RF Assemblies

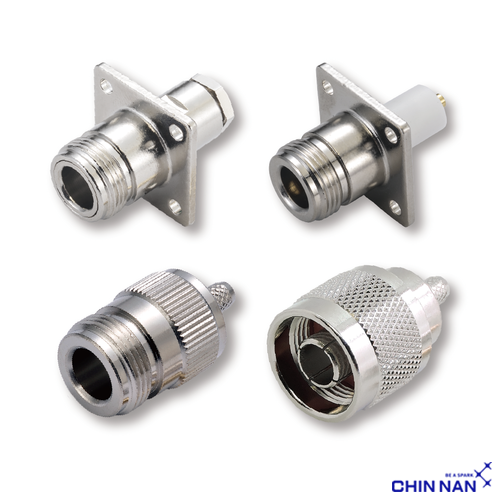

For 50 ohm impendence, applied frequency range is up to 11GHz. For 75 Ohm impendence, it is up to 1.5 GHz.

•Fastening Type: Threaded
•Impedance: 50 Ω / 75 Ω
•Frequency Range: DC to 11GHz
•Terminations: Crimp, Clamp, Solder
•Suggested Application: Aerospace, Broadcast, Audio, Video as Microwave Components like Filters, Couplers, Dividers, Amplifiers, and Attenuators.

*Please notice that there will be damages or disfunction if N connectors of 75 Ω and 50 Ω were matched.

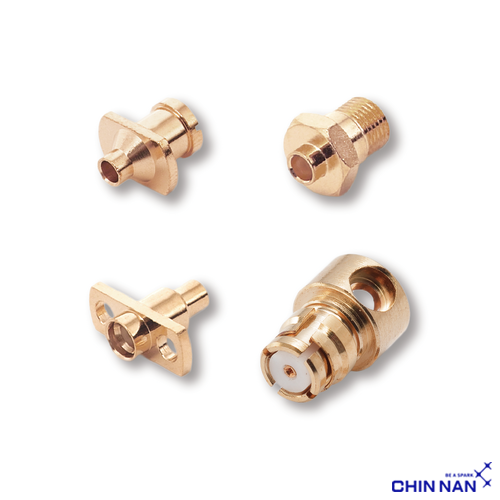

SMP connector applied frequency is up to 40 GHz

•Features: High density packaging, space saving, fast assembly, anti-vibration
•Fastening Type: Snap-On/Push-On
•Impedance: 50 Ω
•Frequency Range: DC to 40 GHz
•Terminations: Solder
•Suggested Application: Antenna, Broadband, Military, Instrumentation, Medical

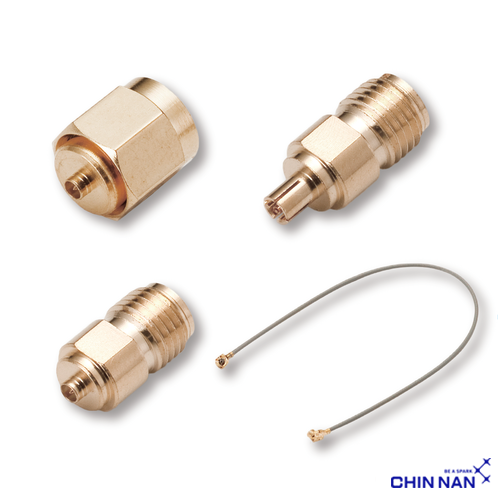

SMT connectors applied frequency is up to 6 GHz. It is compatible with U.FL, MHF series.

•Features: High density packaging, space saving, fast assembly
•Fastening Type: Snap-On
•Impedance: 50 Ω
•Frequency Range: DC to 6 GHz
•Terminations: Solder, Crimp
•Suggested Application: GPS, PDA, Bluetooth, Instrumentation, Test Points, Wireless Communication Devices, Mini-PCI

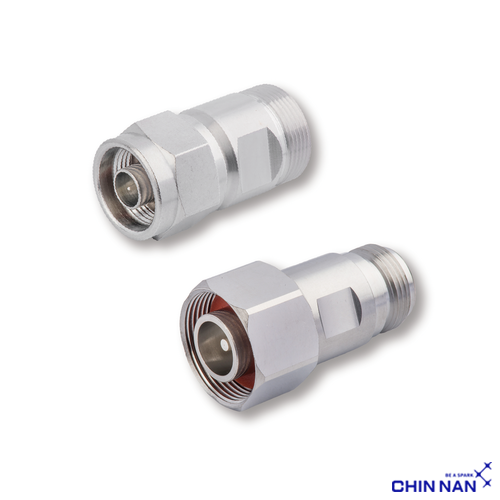

4.1/9.5 Connector applied Frequency up to 14 GHz. Also Known as MINI DIN Connector.

Chin Nan 4.1/9.5 connectors are perfectly suited for growing demand of high performance mobile communication systems.
The mechanical design is the same as 7/16 connector, but the size has a great deal more compact.

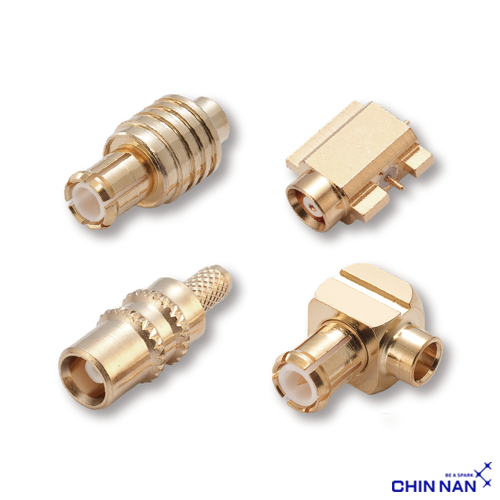

MCX Connector Applied Frequency Up To 6 GHz

•Features: Space saving, fast assembly
•Fastening Type: Snap-On
•Impedance: 50 Ω
•Frequency Range: DC to 6 GHz
•Terminations: Crimp, Solder
•Suggested Application: GPS, Automotive, WLAN, PC/LAN, Base Station, Radios, Wireless/Network Antenna, Instrumentation, Telecommunications

•Features: Quick installation, space saving, smaller SMB

•Fastening Type: Snap-On

•Impedance: 50 Ω

•Frequency Range: DC to 4 GHz

•Terminations: Crimp, Clamp, Solder

•Suggested Application: Radio System, Video Equipment, Telecommunication, GSM

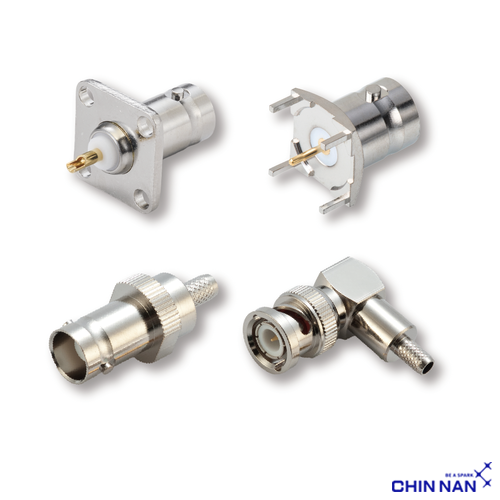

For 50 Ω, applied frequency is up to 4 GHz. For 75 Ω, it is up to 1 GHz.

•Features: Low installed cost, fast assembly

•Fastening Type: Bayonet lock

•Impedance: 50 Ω / 75 Ω

•Frequency Range: DC to 4 GHz

•Terminations: Crimp, Clamp, Solder, Plug In

•Suggested Application: Computer network, Audio, Data Processing & Telecommunications Equipment

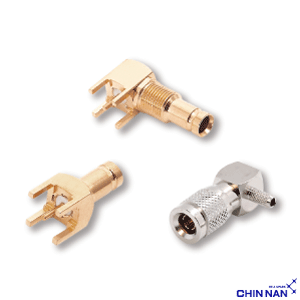

1.0/2.3 Connector Applied Frequency Up to 4 GHz.

•Features: Space saving, dense packing, high data rates

•Fastening Type: Push-Pull

•Impedance: 50 Ω

•Frequency Range: DC to 4 GHz

•Terminations: Crimp, Solder

•Suggested Application: Encoders, Base Stations, Filters & Wireless Components, Switching Equipment, Data communication, Video Processors

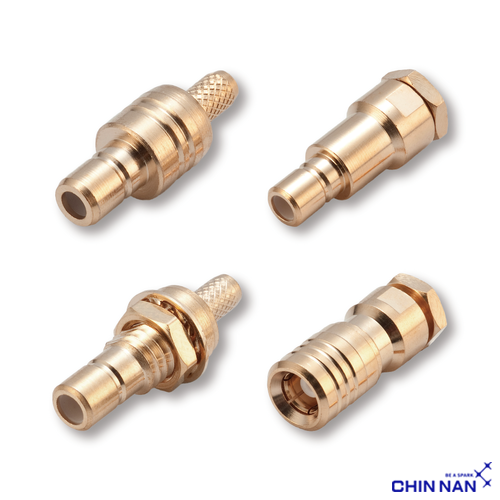

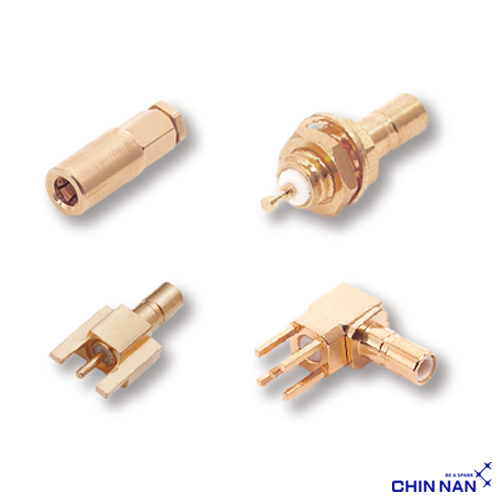

For SMB connectors with 50 Ohm impedance, the frequency range is up to 4 GHz; as for ones with 75 Ohm impendence, the range is up to 2 GHz.

•Features: Fast assembly, space saving

•Fastening Type: Snap-On

•Impedance: 50 Ω / 75 Ω

•Frequency Range: DC to 4 GHz

•Terminations: Crimp, Clamp, Solder

•Suggested Application: Telecommunications, Test Equipment, Instrumentation, GPS
