PRODUCTS
RF+
Key Differences Between RF+ And Standard Connectors.
．Supreme Industry Standard
．Precise Simulation Analysis
．Triple Quality Verifications
Blind Mate
RF+
Blind mate connectors are used in which the mating action happens where equipment must slide in and make connections inside the cabinet.

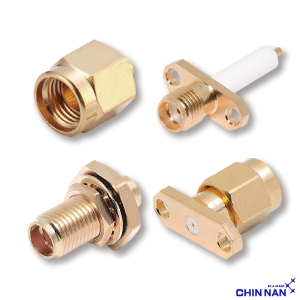

SMA 27G
RF+
Applied frequency is extended up to 27 GHz
•Features: Low VSWR, high frequency SMA
•Fastening Type: Threaded
•Impedance: 50 Ω
•Frequency Range: DC to 27 GHz
•Terminations: Clamp, Crimp, Solder
•Suggested Application: PCB, Microwave Components, RF Assemblies

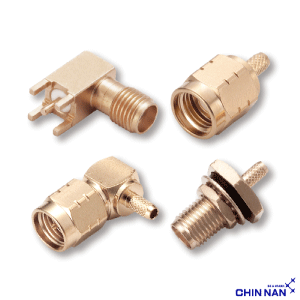

Non-Magnetic
RF+
Non-magnetic coaxial connectors are used primarily inside MRI medical equipment.
Magnetic Resonance Imaging is an advanced imaging technique that is able to produce high resolution cross-sectional images for inside human body by exploiting Radio Frequency (RF) pulses.
Non-magnetic coaxial connectors allow placement in or near the imaging area in advanced medical imagin equipment.
4.1/9.5 Connector
RF+
Chin Nan 4.1/9.5 connectors are perfectly suited for growing demand of high performance mobile communication systems.
The mechanical design is the same as 7/16 connector, but the size has a great deal more compact. The applied frequency range is from DC to 14GHz.
Low PIM
RF+
Low PIM connectors are designed for high frequency, low-intermodulation and low return loss, suitable for outdoor applications.
These low loss 50ohm connectors are now widely used in wireless, wifi and GSM base station.
HDTV Application
RF+
Chin Nan launched a new range of 75 ohm BNC connectors which operate at the increased bandwidth and frequencies now required for HD Serial Digital Video environments.
They are provided superior VSWR, impendance and return loss through 4 GHz.
The connector features quality with machined brass bodies, Telon insulators and captive center contacts.

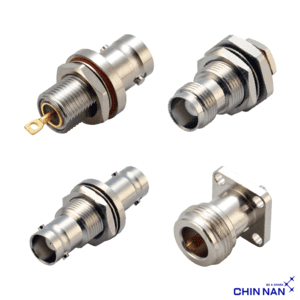

Sealed
RF+
Chin Nan sealed connectors are provided with waterproof protection of environmentally.
The sealed connector is rated to IP68 criteria and can be submerged to shallow depths.
The sealed connectors prevent the ingress water, moisture, gasoline and other chemical.
4K-UHD-SDI
RF+
Chin Nan launched a new range of 75 ohm connectors which operate at the increased bandwidth and frequencies required for UHD Serial Digital Video environments.
They are provided superior VSWR, impendance and return loss through 6 GHz.

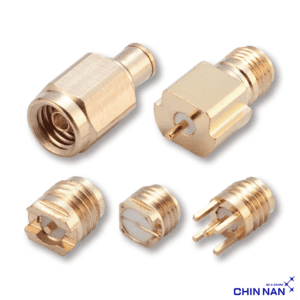

Anti-Vibration
RF+
Chin Nan anti-vibration connectors advanced the design of standard push-on RF/Microwave connector by adding a screwing mechanism to prevent the accidental disconnection.

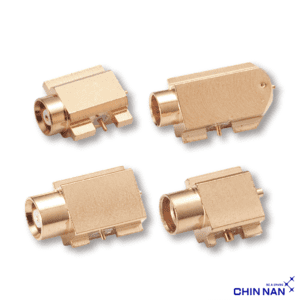

RF Switch
RF+
RF switching connector provides a unique means of switching between two RF signal paths.
As user friendly as a standard connector, the switch is mechanically activated by mating and un-mating the connector.
This connector lets antenna switches a connection either internally or externally.

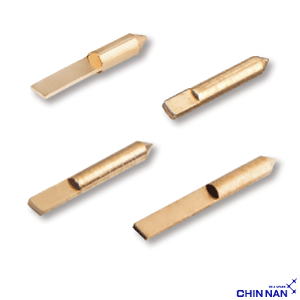

Accessories
RF+
Accessories
